VE3KH FN03cg - Current Status



2024 Fall

50 MHz (offline)
  • Flex-6600M to ACOM PA to InnovAntennas 50 MHz 3el LFA-Q (Antenna down for repairs)

144 222 432 902 1296 MHz (offline)
  •  Flex-6600M to Q5 Signal 5BVUX XVTR to InnovAntennas 130-1300 MHz Log Periodic (Sold)

2304 3400 MHz

  • Built (on hold)

5760 MHz Dish System

  • 5760 Kuhne XVTR, 40W PA, LNA, 2' RadioWaves Dish

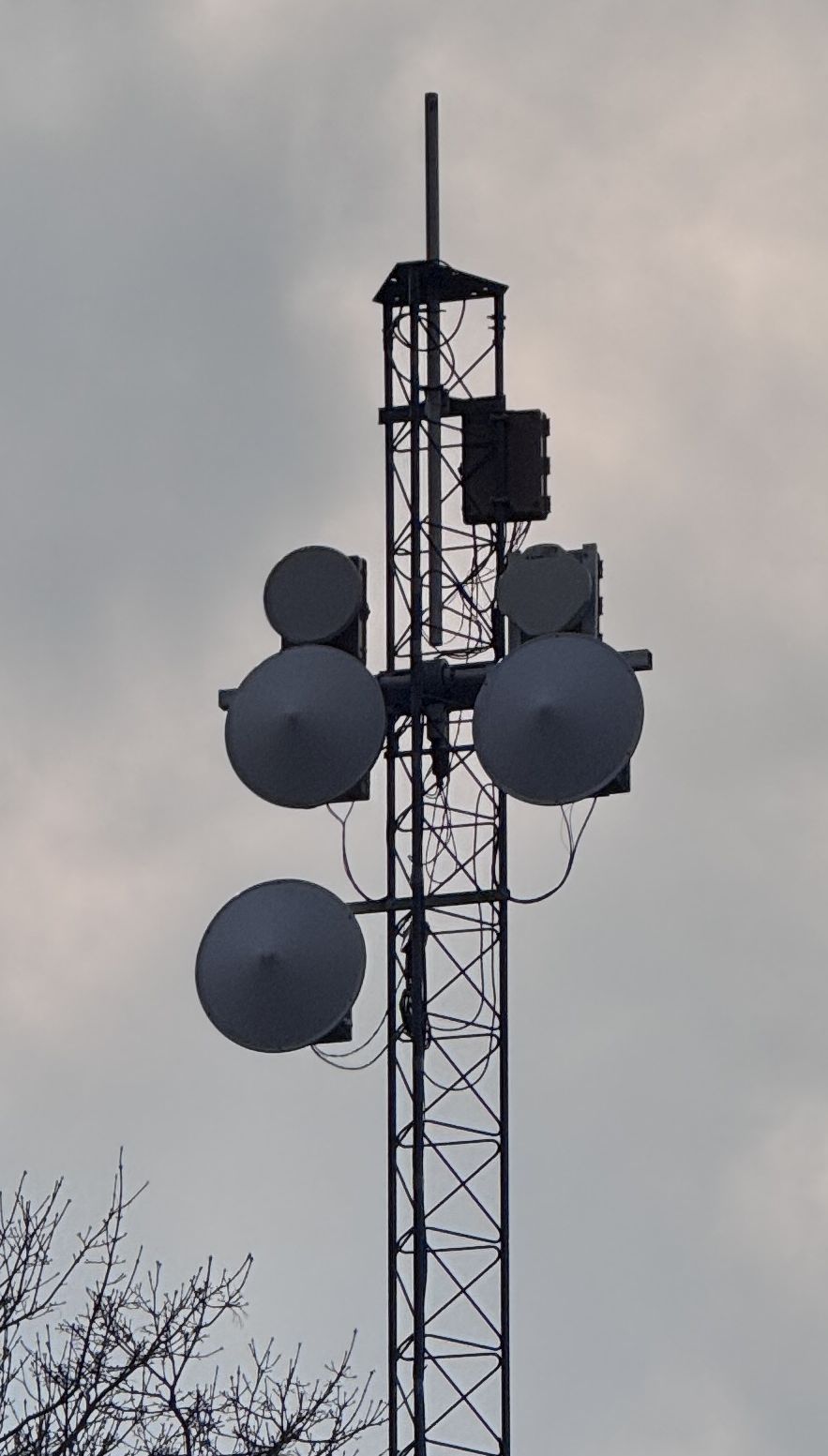

10 & 24 & 47 & 78 GHz Dish Systems on Slew Drive Elevation Boom
  • 10 GHz Kuhne XVTR MK4, 20W PA, LNA, 2' RadioWaves Dish
  • 24 GHz Kuhne XVTR 2W, LNA, 2' SAF Dish
  • 47 GHz Kuhne XVTR & 1W PA, Procom 26cm Dish with RadioWaves Radome, I3OPW WG Switch
  • 76 / 78 GHz Kuhne MKU 76 G2 XVTR 250mW, MTI 1' WR-12 Dish, VE3KH automated DC7YS WR-12 WG Switch

Rohn 45 Rotating Tower M2 OR-2800 and GHZ Dish Elevation using Green Heron AzEl Controller

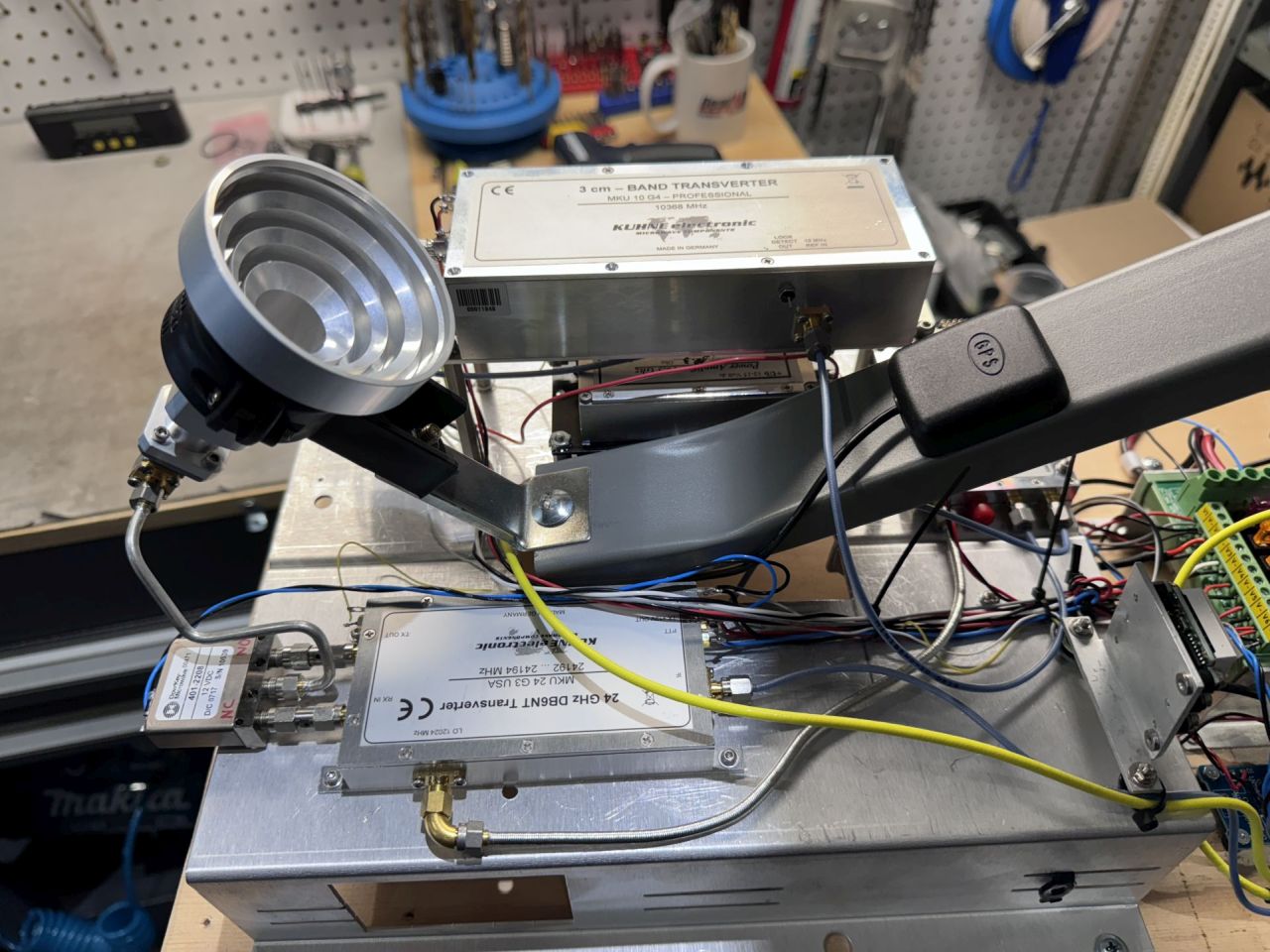

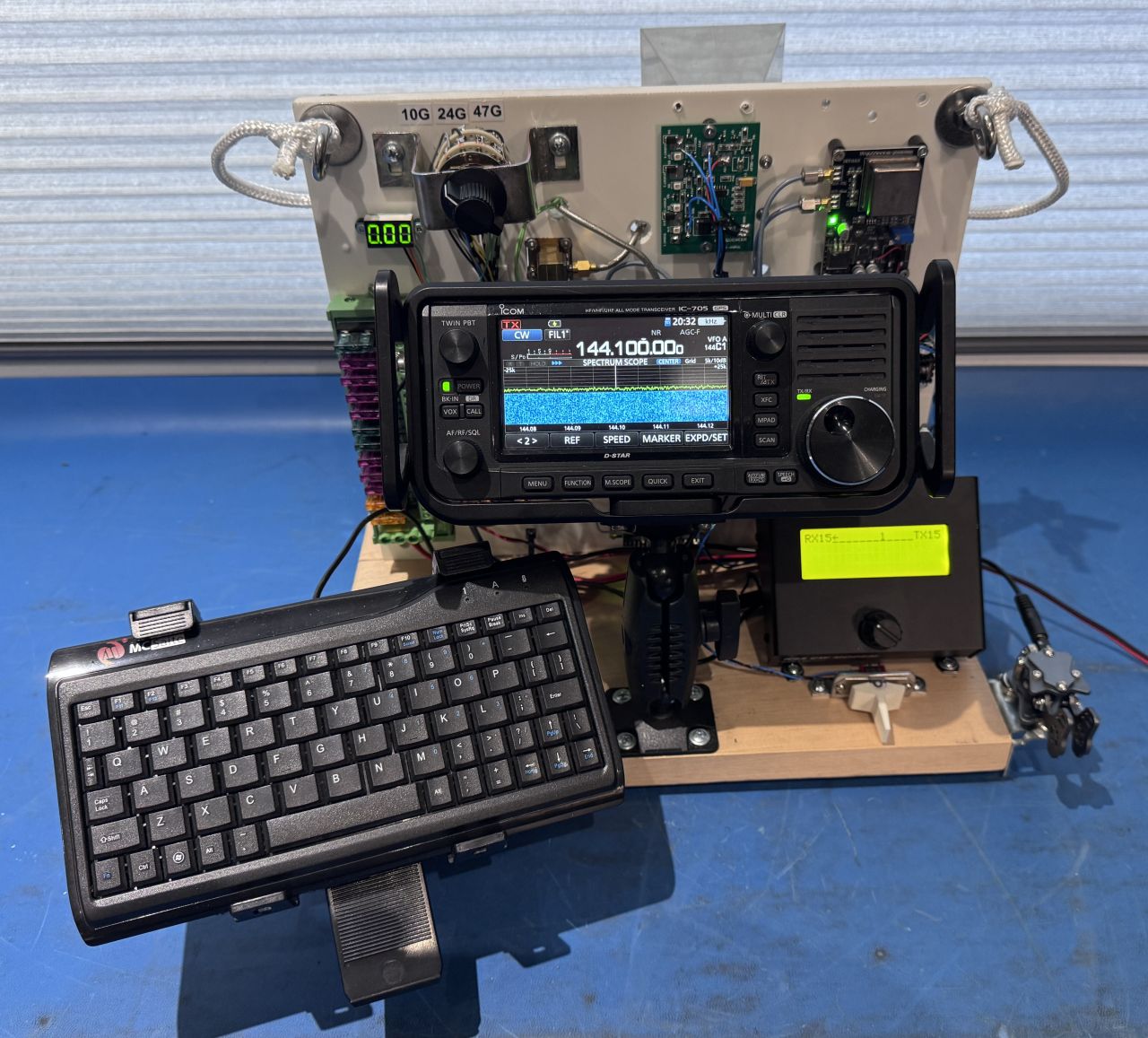

Portable Station - 10 & 24 GHz

  • Icom IC-705

  • 10 GHz Kuhne XVTR and 10W PA

  • 24 GHz Kuhne XVTR

  • DigiWave 24" Dish with W1GHZ Dual Band Feed

  • Manfrotto Tripod & Fluid Head

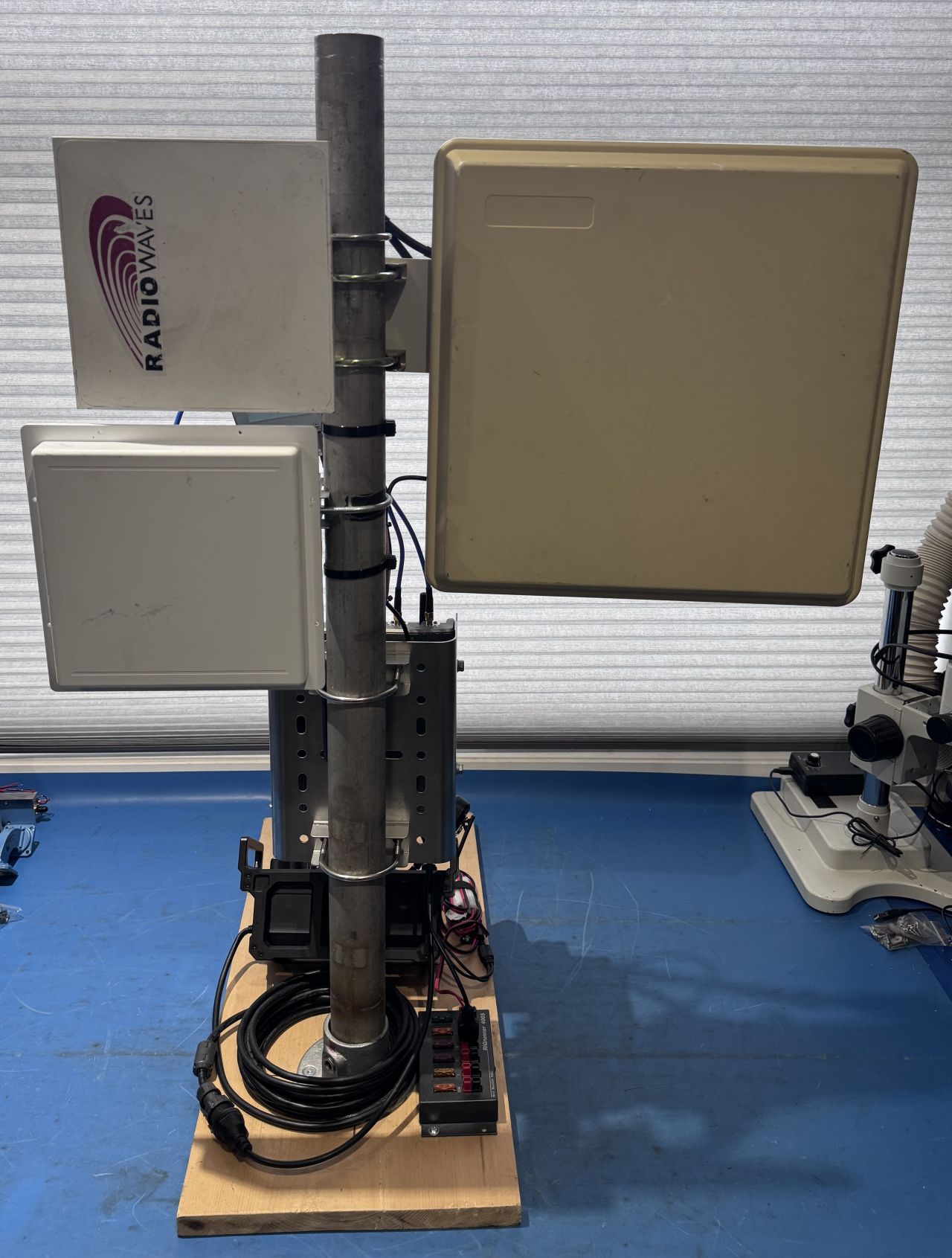

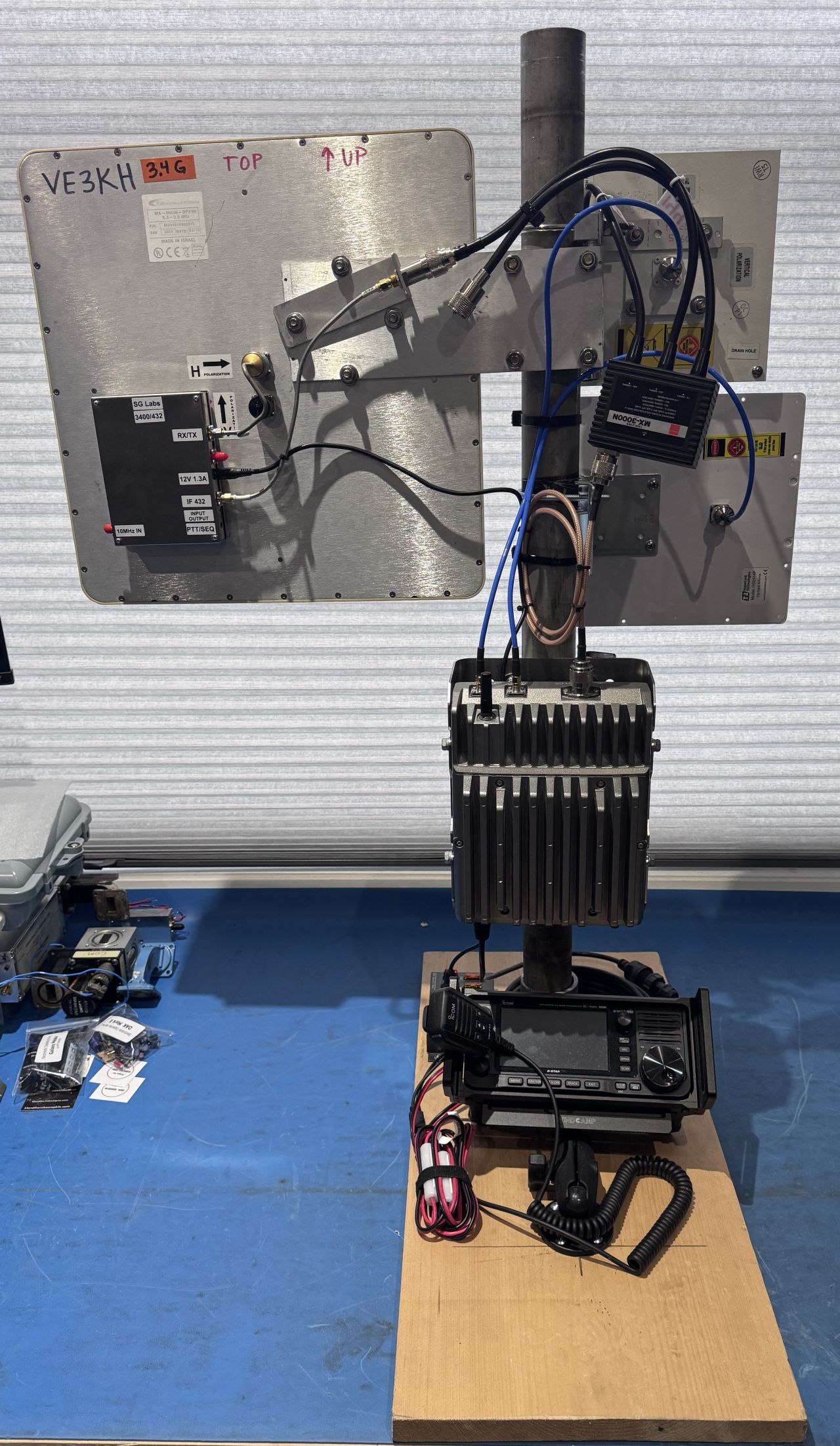

Portable Station - Misc

  • Icom IC-905

    • 144 10W TBD

    • 432 10W TBD

    • 1296 10W TBD

    • 2304 2W Grid Dish 21 dBi

    • 5760 2W Grid Dish 27 dBi

  • Manfrotto Tripod & Fluid Head

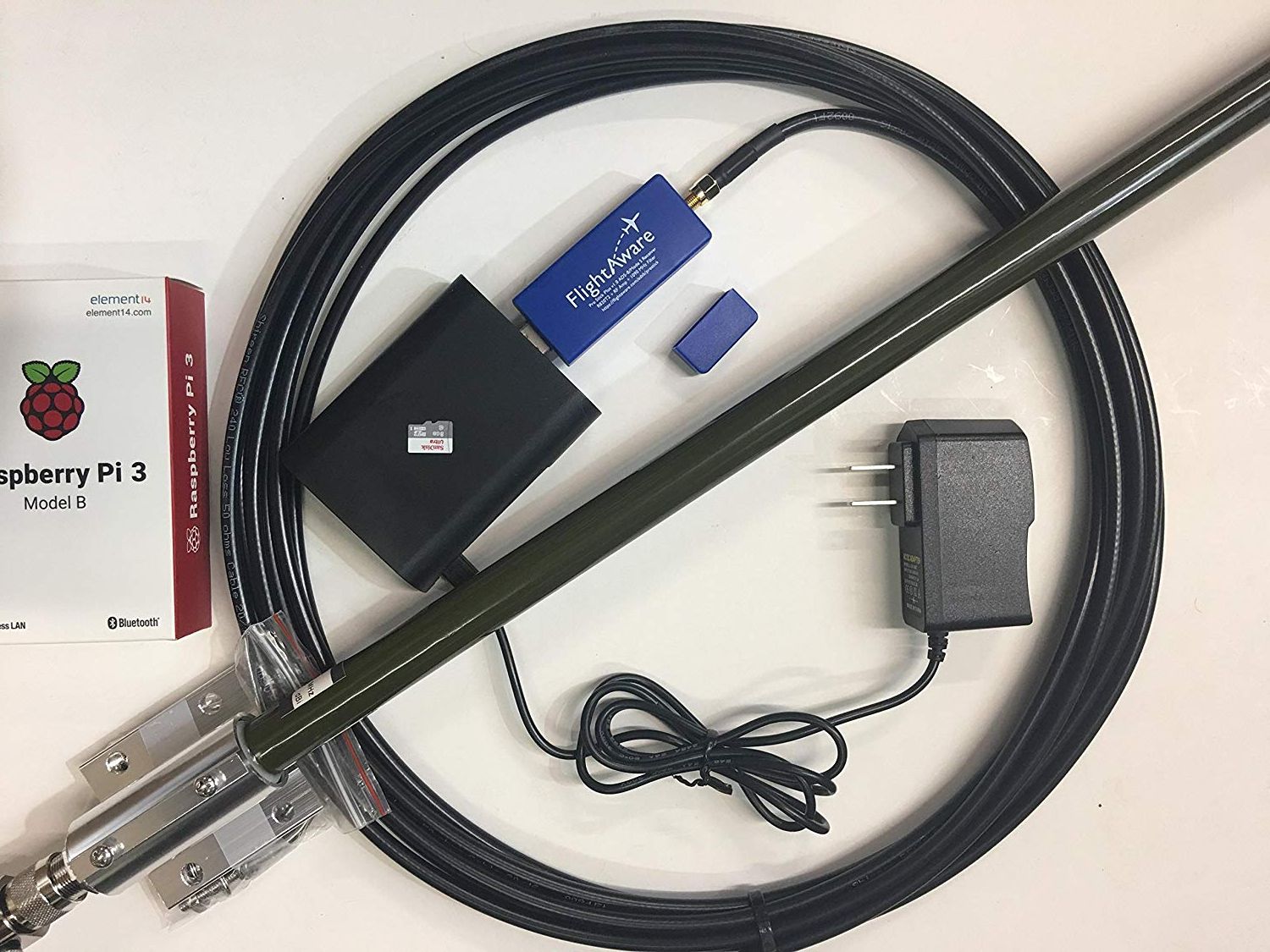

Flight Aware - piAware
  • Raspberry PI 3 Model B
  • USB PRO STICK PLUS
  • 1090MHz ADS-B Antenna







NEW QTH - FN03cg

Jun 2016 - Present
