6m 1KW Solid State Power Amplifier

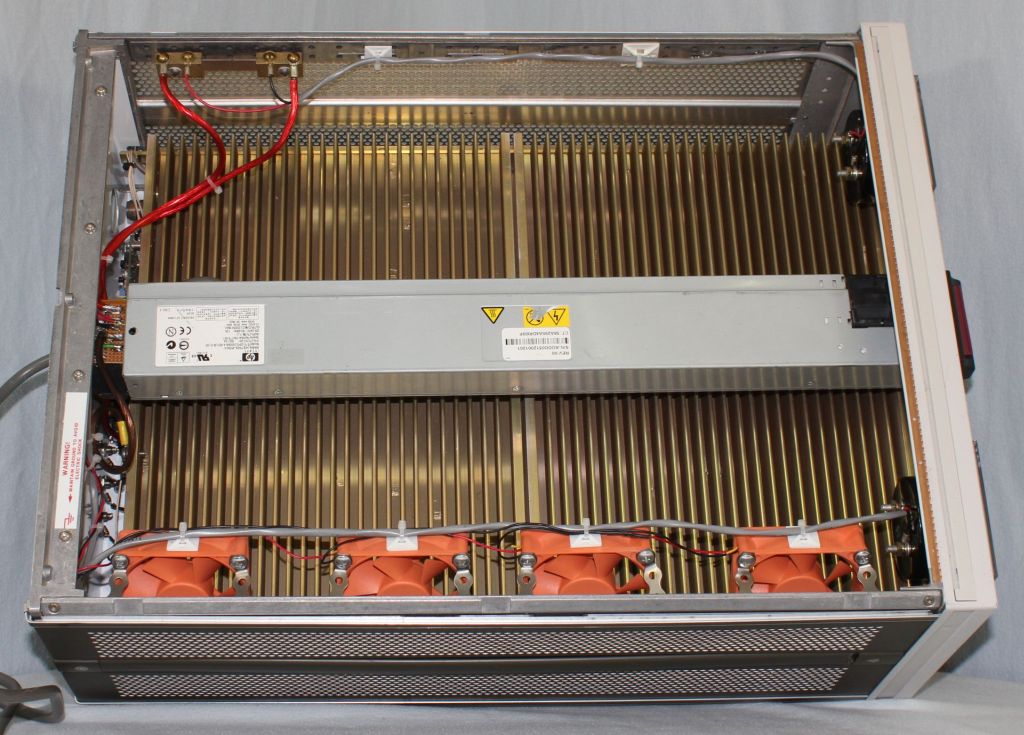

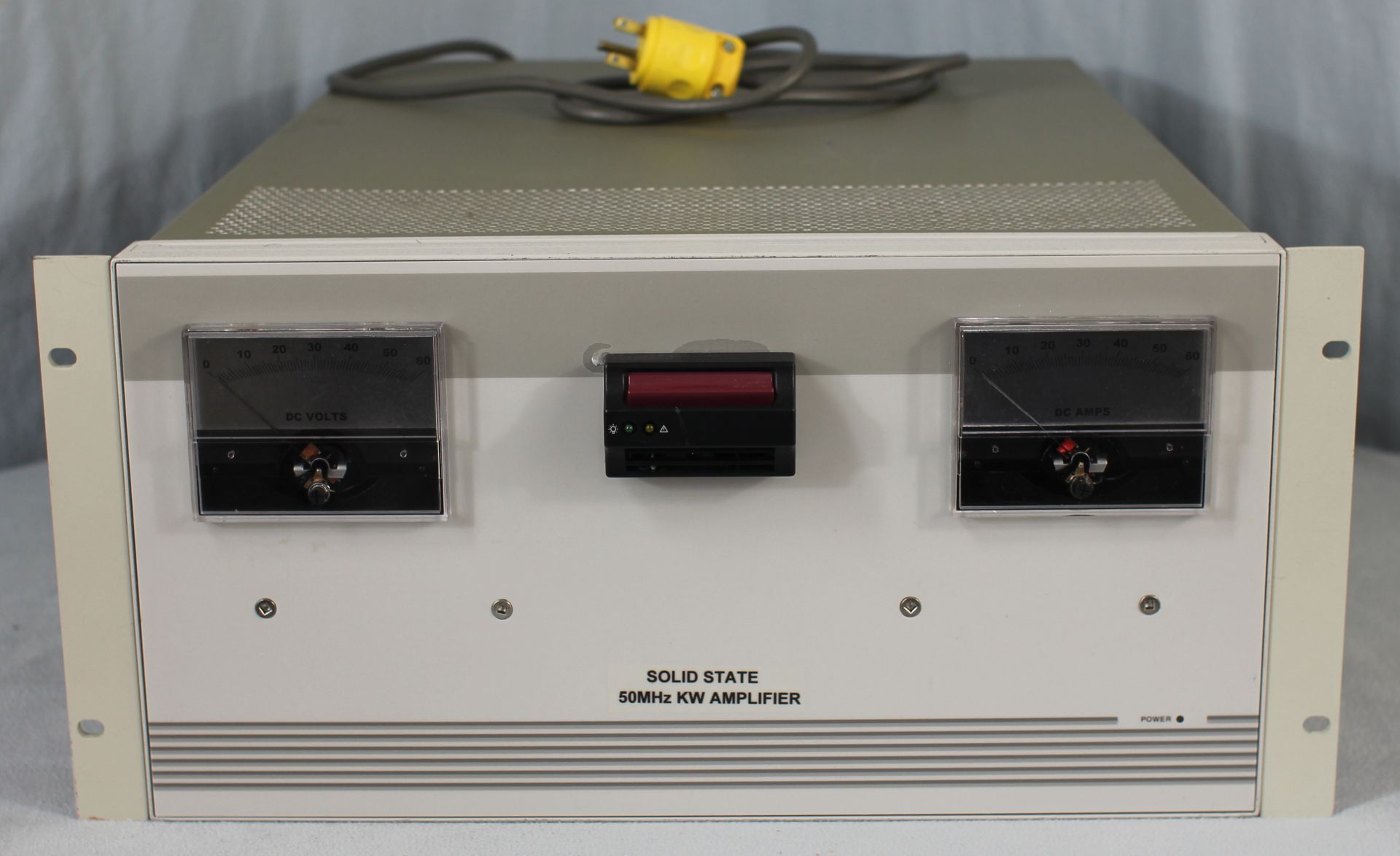

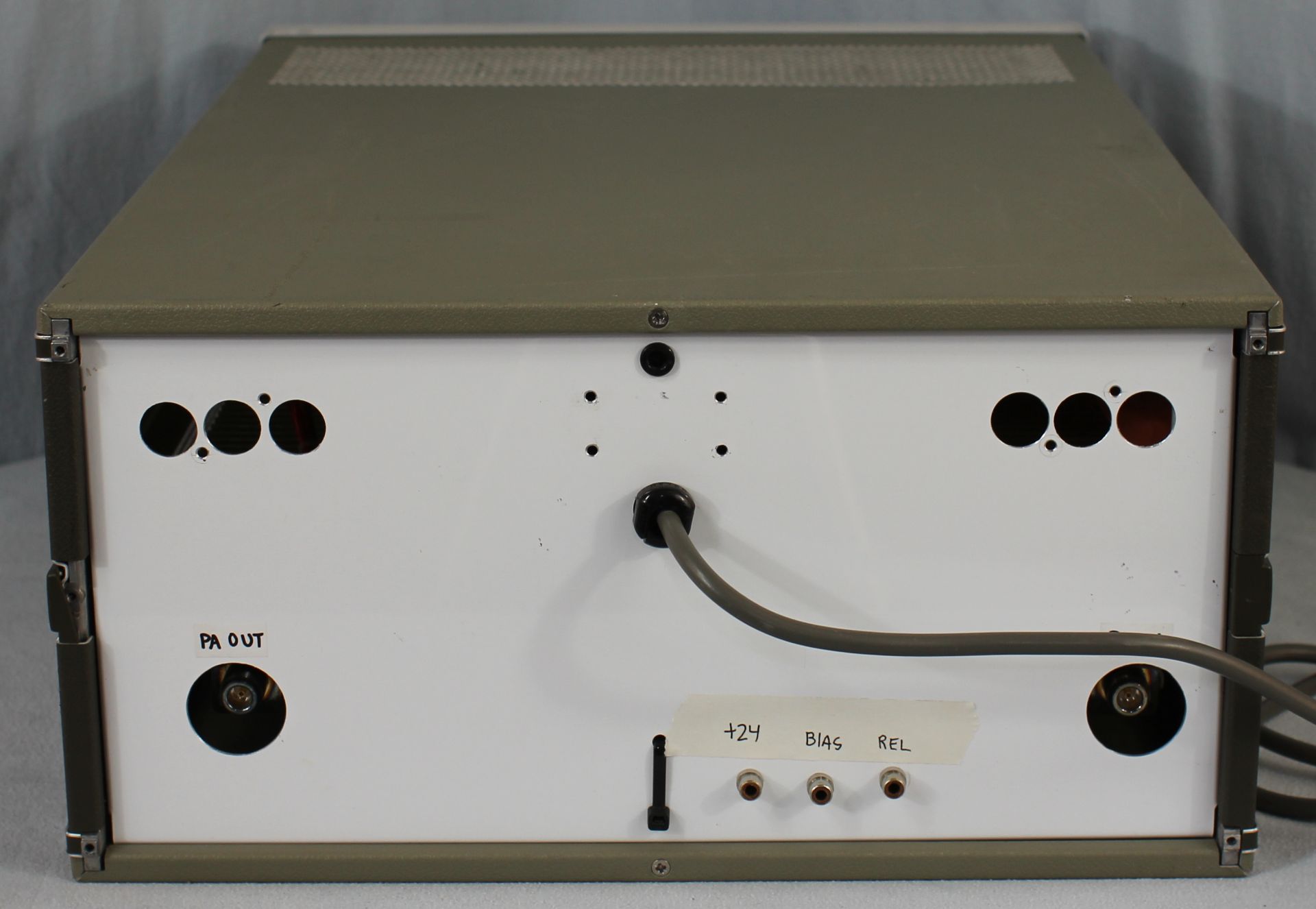

These pictures detail the VE3KH 6m 1KW SSPA:

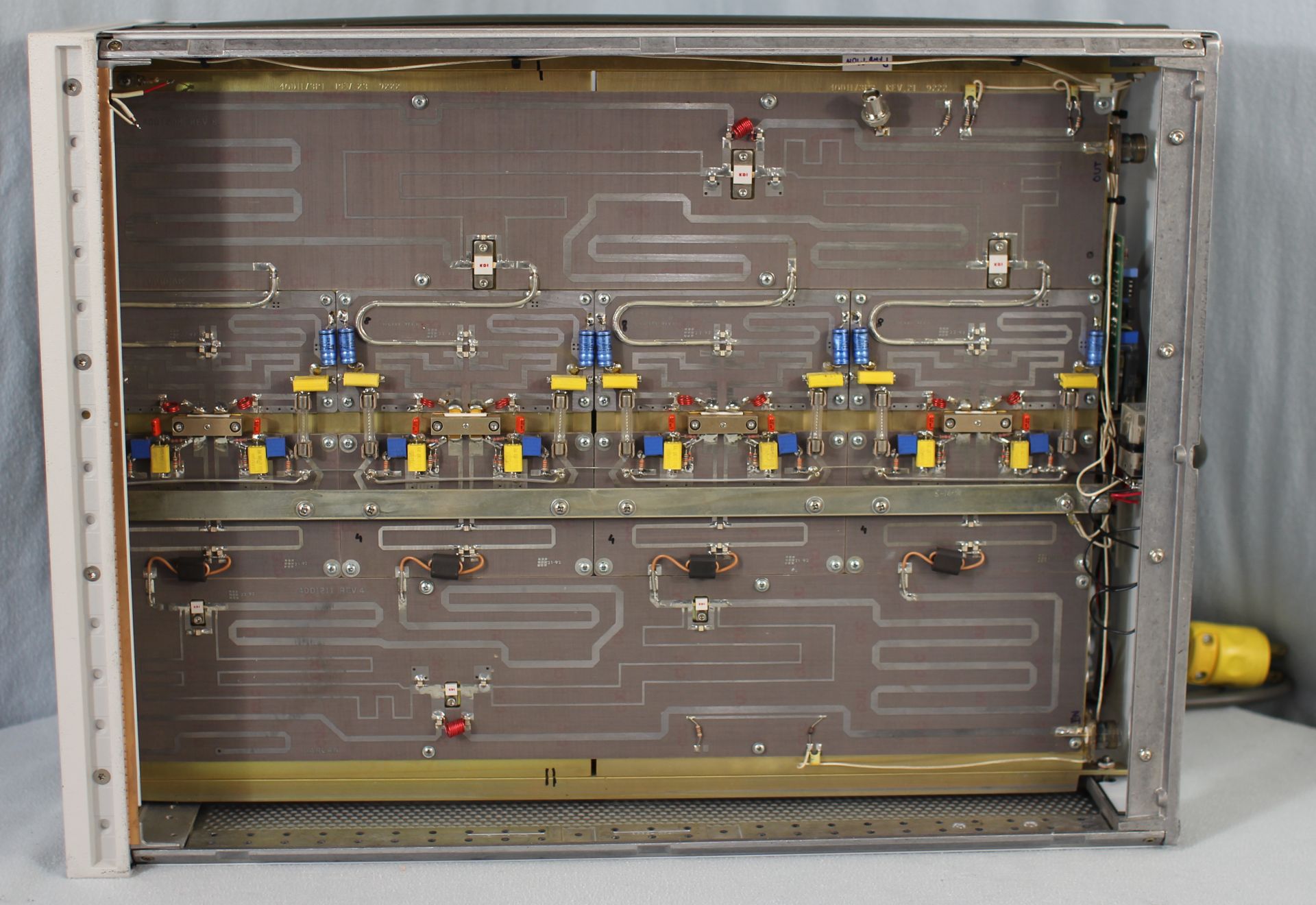

  • Larcan Lo-Lo Power Amplifier module

  • Hewlett-Packard 19" Rack Mount Chassis

  • Hewlett-Packard 2KW 220VAC / 48VDC PS
Pin (w) Pout (w) Vin (V) Iin (A) PS (W) Eff Pgain (dB)
8 1100 48 33 1584 69% 21.4
