DTSI manufactures Custom RF solutions for customers around the world. Economical solutions featuring guaranteed refurbished equipment from reliable trusted manufacturers such as Keysight / Agilent and others.



Custom RF Solutions

Let DTSI design / build a custom RF Interface solution for your application ...

1) Choose your switches

  • SPDT, TRANSFER, SP4T, SP6T

  • Frequency Range 4, 20, 26.5, 33, 40 GHz

2) Add other parts

  • RF Interconnect Cables

  • RF Devices (ie: Filters, Mixers, Splitters / Combiners, Amplifiers, Isolators / Circulators Couplers, etc)

3) Choose your control

  • LXI ( Ethernet LAN / GPIB)

  • GPIB

4) Choose your chassis

  • 19" 2U or 4U

  • Desktop or Rack Mount

5) DTSI will design a custom front interface panel, integrate the components, test functionality, and ship you guaranteed solution. See examples below.

We will work with you to get you exactly what you need - fast reliable and economical from our large stock of components!



Custom RF Switching Solutions featuring embedded Keysight Agilent LXI technology ( L4445A 34945A 34945EXT )

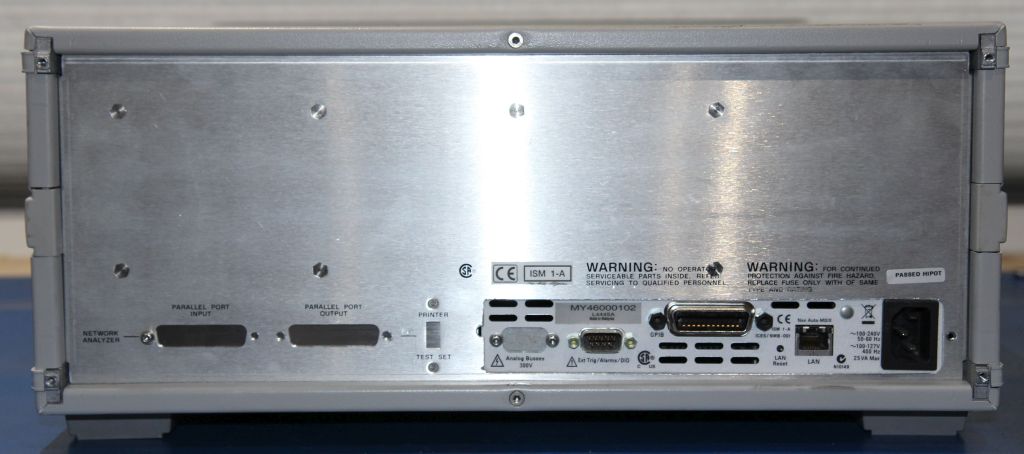

This DTSI Switch matrix version features LXI quality components and command set / control. The version shown is a basic configuration for up to quantity 8 of Keysight multiport switches up to 40GHz (ie: L7104ABC or 87104ABCD SP4T / L7106ABC or 87106ABCD SP6T). Rack Mountable 19” chassis requiring 4U / 7” of vertical rack space (approx 7”H x 20”D x 19”W). Software drivers for most common programming environments. LXI compliance includes Graphical Web interface, Ethernet connectivity, GPIB Control. Similar to L4491A or L4445A & 34945A & 34945EXT & Y1151A (4).





Custom RF Switching Solutions featuring embedded Keysight Agilent technology ( 87050A )

This DTSI Switch matrix version features Keysight quality components and command set / control based on 87050A technology. Simple GPIB control commands and Rack Mountable 19” chassis requiring 2U / 3.5” of vertical rack space.

Version 5SW configured as 1x24 with 2.4mm female connectors (33GHz with good performance higher)

Version 5SW configured as 1x24 with 3.5mm female connectors (33GHz with good performance higher)
