Deadline Technical Solutions

DTSI can supply quality refurbished Keysight / Agilent / HP and others coaxial switches from stock at economical prices. All performance specifications are verified and guaranteed.







Switches

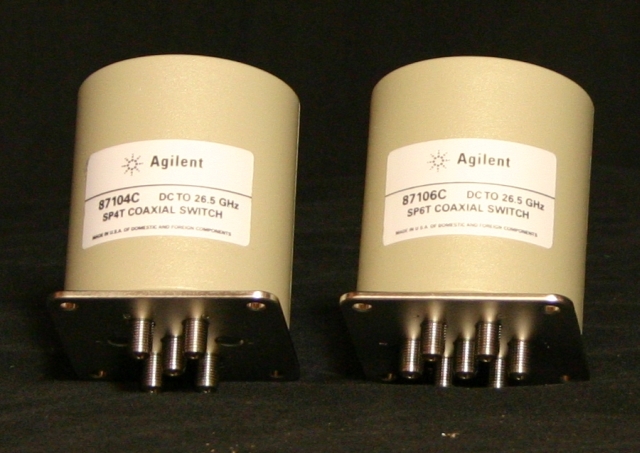

SP4T Switches (4, 20, 26.5, 32 GHz)

  • 87104A, 87104B, 87104C

  • 87204A, 87204B, 87204C

  • L7104A, L7104B

  • Available Options 100, T24

SP6T Switches (4, 20, 26.5, 32 GHz)

  • 87106A, 87106B, 87106C, 87106D

  • 87206A, 87206B, 87206C

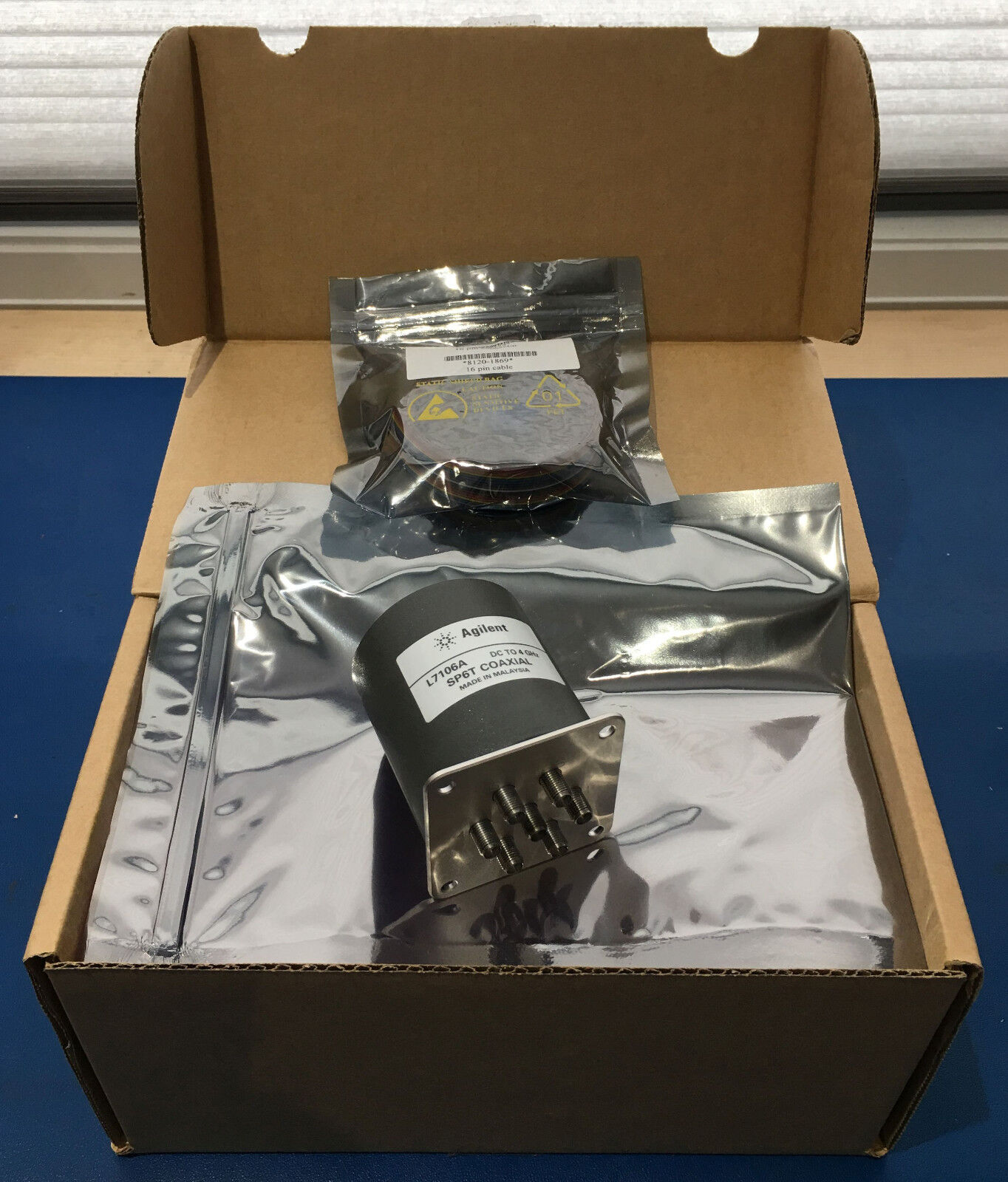

  • L7106A, L7106B

  • Available Options 100, T24

Transfer Switches (26.5, 40, 50 GHz)

  • 87222C, 87222D, 87222E



Misc Switches

  • N1810 N1811

  • 8765C

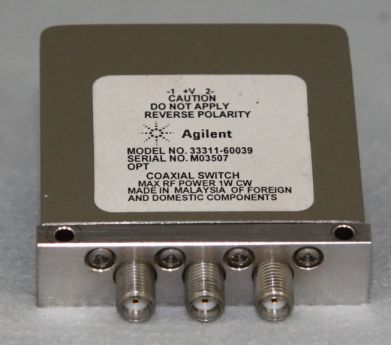

  • 33311A

  • 33314A

Switch & Attenuator Driver Boards

  • 87050-60149 Controller

  • 87050-60096 Controller

  • 87050-60050 Switch Driver

  • 87050-60324 Switch Driver

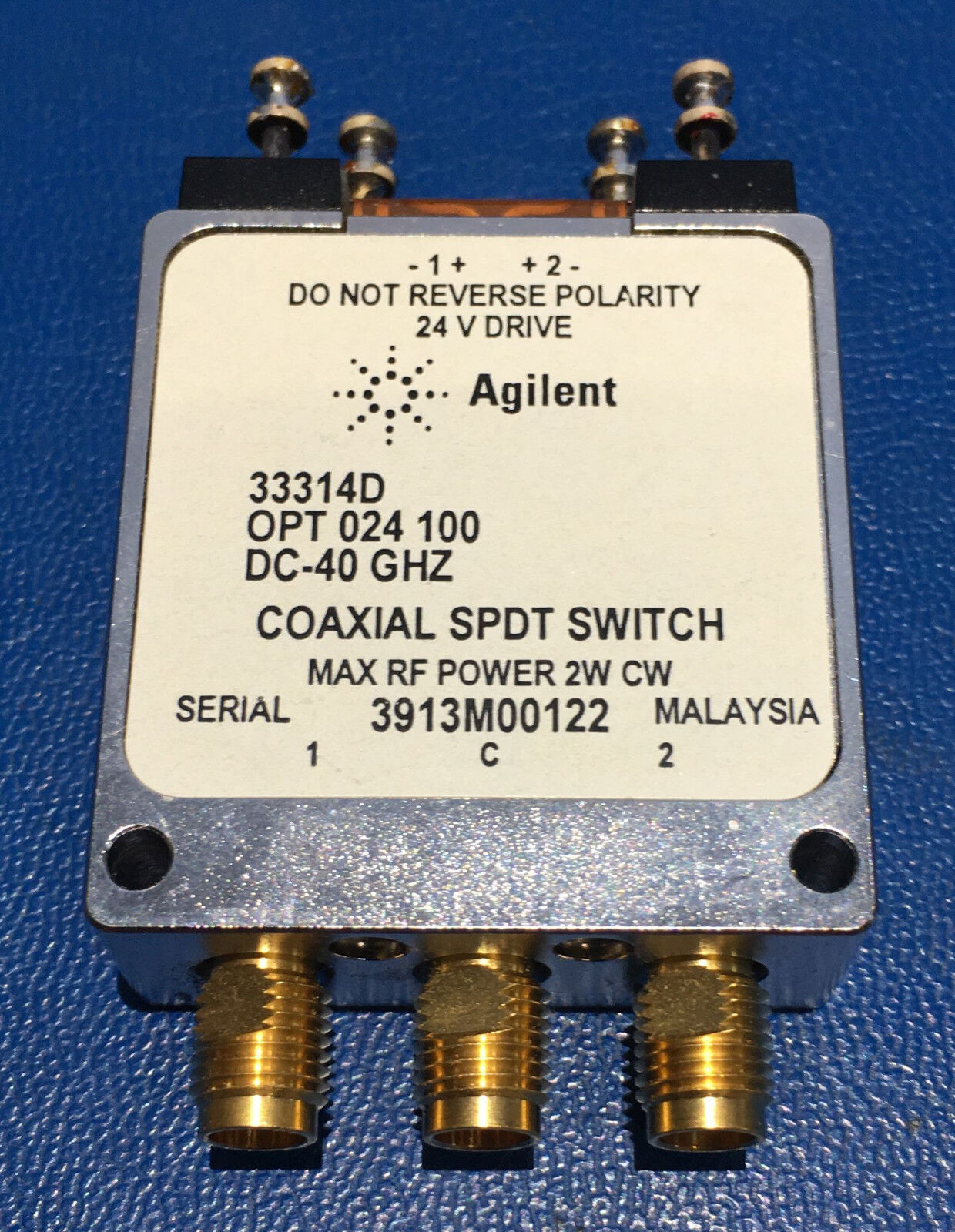

Agilent 33314D DC - 40 GHz Coaxial SPDT Switch (8)

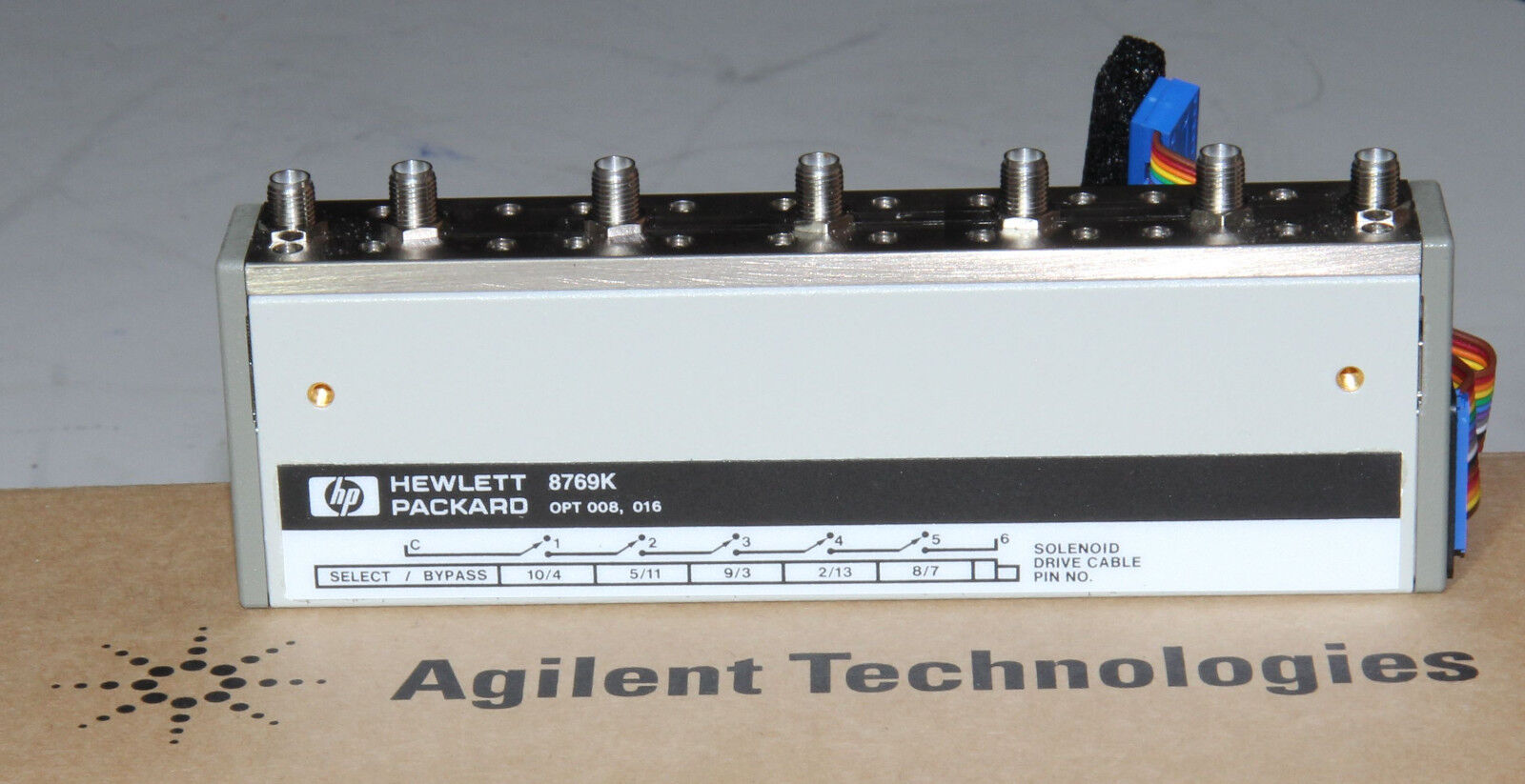

HP Agilent 8769K SP6T Coaxial Switch RF Relay

The HP / Agilent 8769K single-pole, six-throw microwave switch utilizes the same proven technology as the HP / Agilent 849X family of step attenuators. It offers rugged reliability, excellent repeatability (typically 0.01 dB to 18 GHz and 0.05 dB to 26.5 GHz), long life (greater than five million switching cycles) and compact design. Switching time is less than 20 ms, including contact settling time. The switch includes self-interrupting contacts which minimize power consumption and simplify the driver circuit design.

This item has options 008, 106 as pictured and also includes the ribbon control cable.

Also have available 6" long 3.5mm male right angle cables.

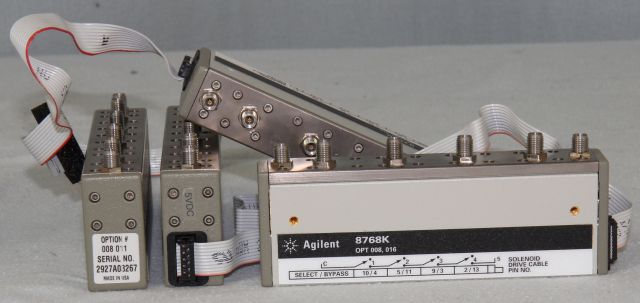

HP Agilent 8768K SP5T Coaxial Switch RF Relay

This item has options 008, 106 as pictured and also includes the ribbon control cable.
