DTSI can supply Agilent / Hewlett-Packard 87050A Multiport Test Sets from our large stock. We even offer customized solutions based on that control platform.



Keysight Agilent HP 87050A Multiport Test Sets (50 Ohm)

Most configurations available from stock. Many are in excellent condition with very low switch activations ensuring performance reliability longevity and value!

Simple GPIB command control make these Switch Units ideal for any RF Switching application

The Agilent 87050A multiport test set dramatically reduces overall tune and test times because DUT only needs to be connected once to test multiple signal paths. Minimizing the number of connections also reduces operation fatigue and lowers the chance of connection to the wrong port. In addition, fewer connections means less wear on cables, connectors, fixtures and DUTs.

Many of today's wireless communications, broadband, and cable-television components have three or more ports. These components require multiple connections for complete characterization with a two-port network analyzer. You can simplify high-volume tuning and testing of these devices by using a multiport test set between the device under test (DUT) and your network analyzer.

Features:

  • Mechanical switching

  • 87050A-H## Test Sets for use with 875X, 871X, PNA Series Analyzers (30KHz - 6 GHz, 50 Ohm, N(f) connectors)

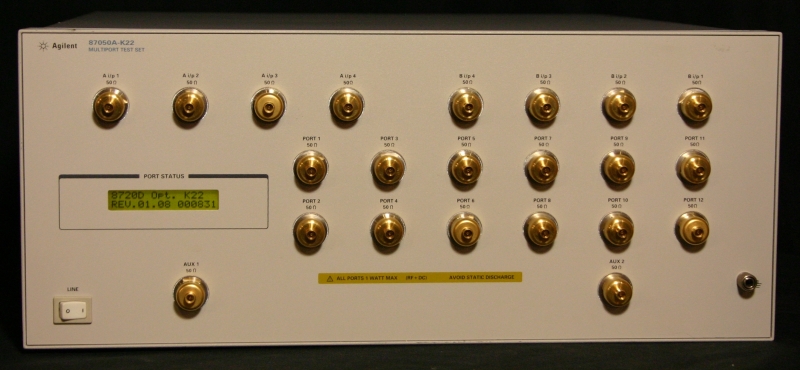

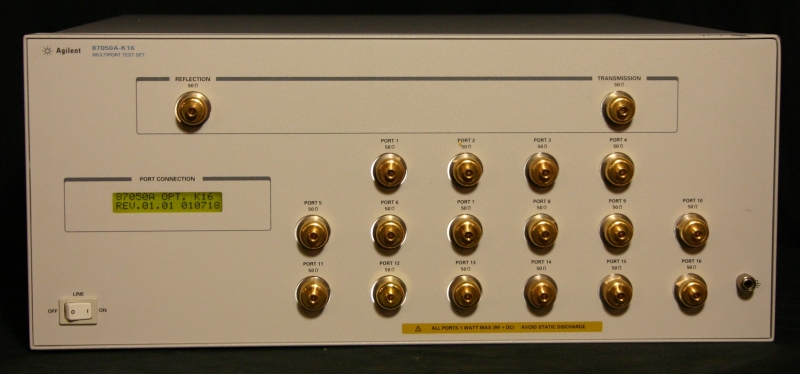

  • 87050A-K## Test Sets for use with 872X, 875X, PNA Series Analyzers (50 MHz-20 GHz, 50 Ohm, 3.5mm(f) connectors)

  • 87050A Datasheet

  • Multiport Test Solutions Datasheet

Additional Information by Configuration:







Deadline Technical Solutions features a full line of Agilent Multiport Test Sets that can be shipped today from our stock

 ... saving you thousands and long lead times. Available immediately for sale or monthly rental!

We can customize and configure to your application ... inquire !



We also carry a full compliment of spare parts and can provide service or verification for your multiport test sets:

  • chassis

  • power supplies

  • control boards

  • front panel connectors (Nf, 3.5mmf)

  • RF cables

  • switches



Custom RF Switching Solutions featuring embedded Keysight Agilent technology ( 87050A )

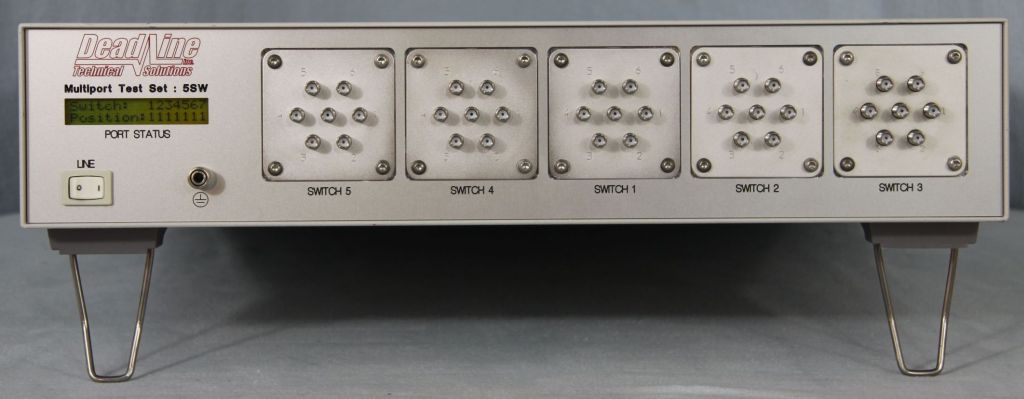

This DTSI Switch matrix version features Keysight quality components and command set / control based on 87050A technology. Simple GPIB control commands and Rack Mountable 19” chassis requiring 2U / 3.5” of vertical rack space.

Version 5SW configured as 1x24 with 2.4mm female connectors (32GHz with good performance higher)

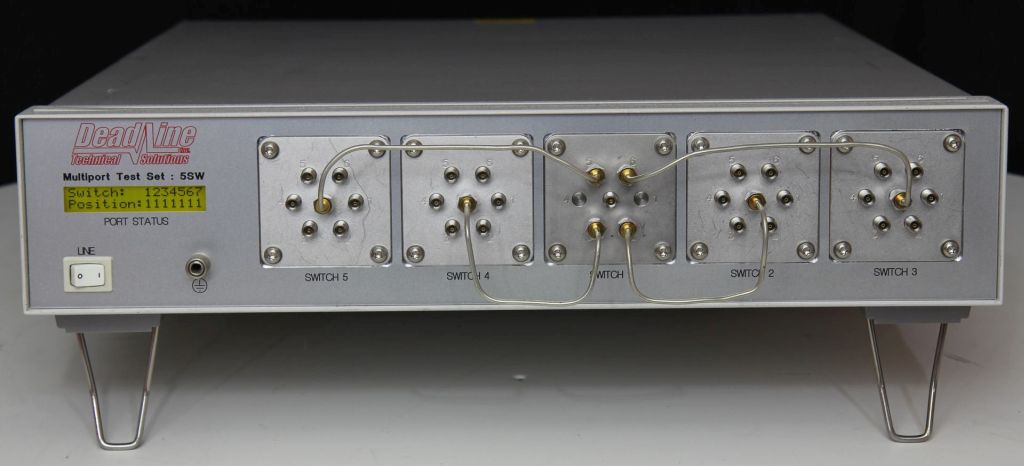

Version 5SW configured as 1x24 with 3.5mm female connectors (33GHz with good performance higher)
